Manx Mobility

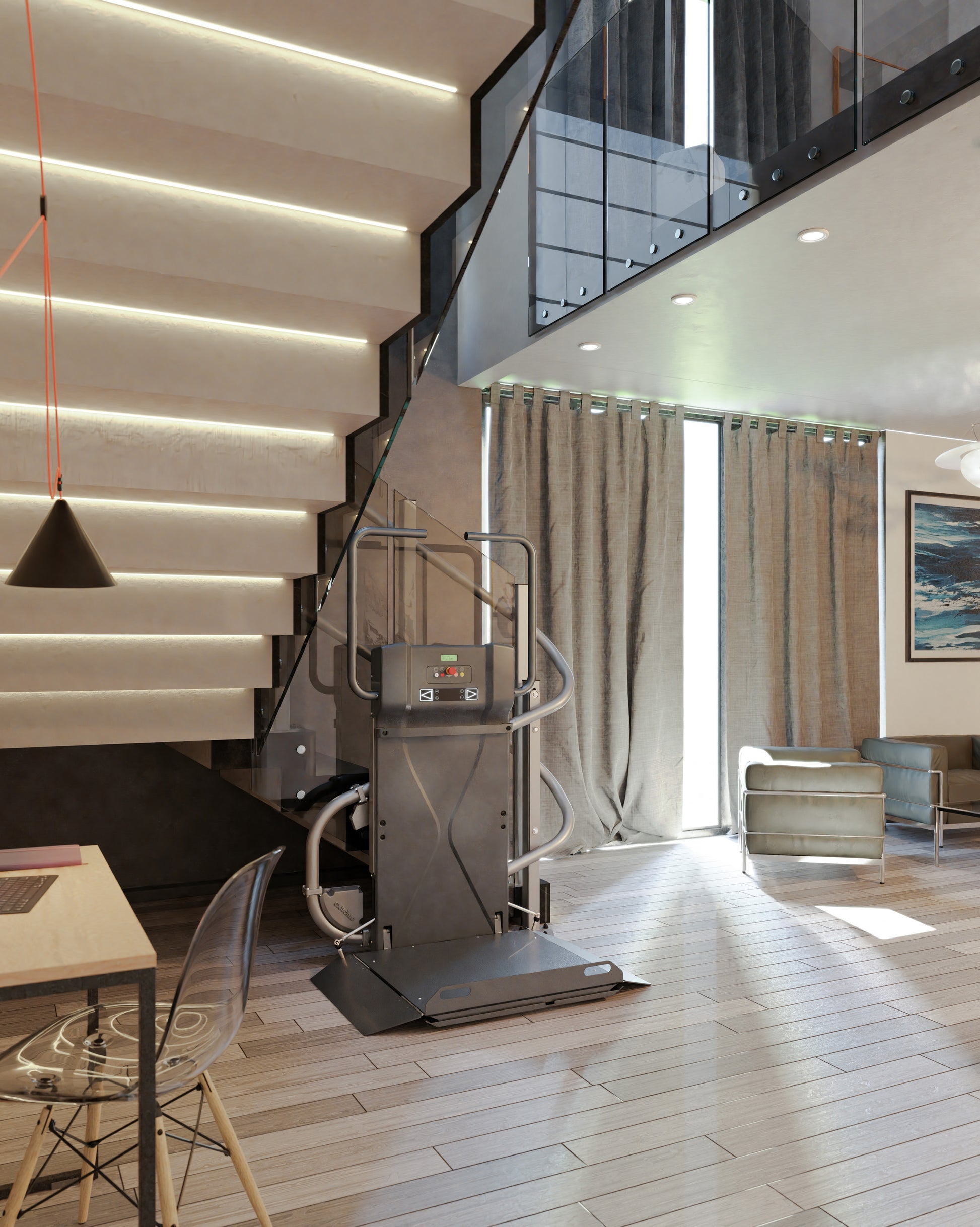

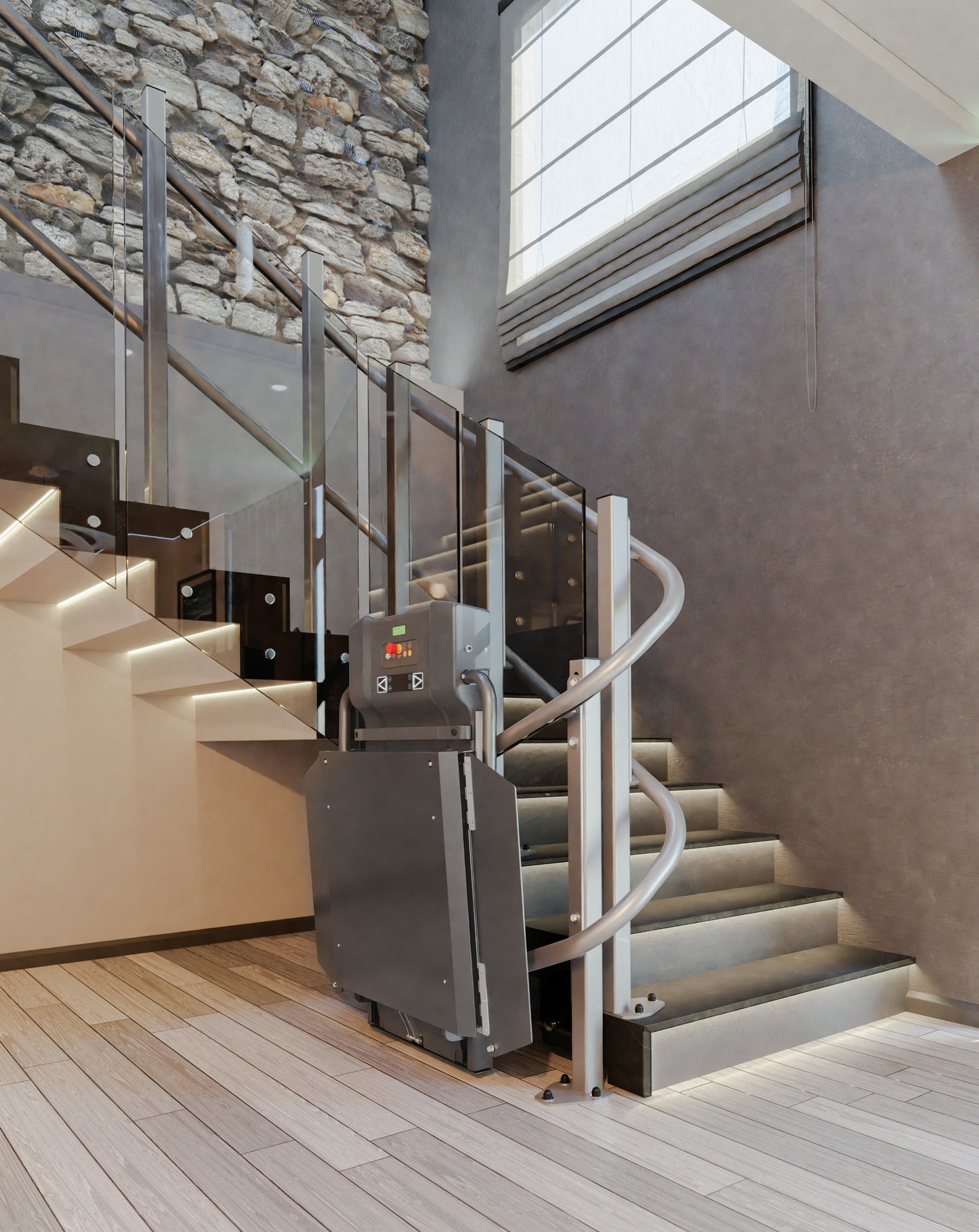

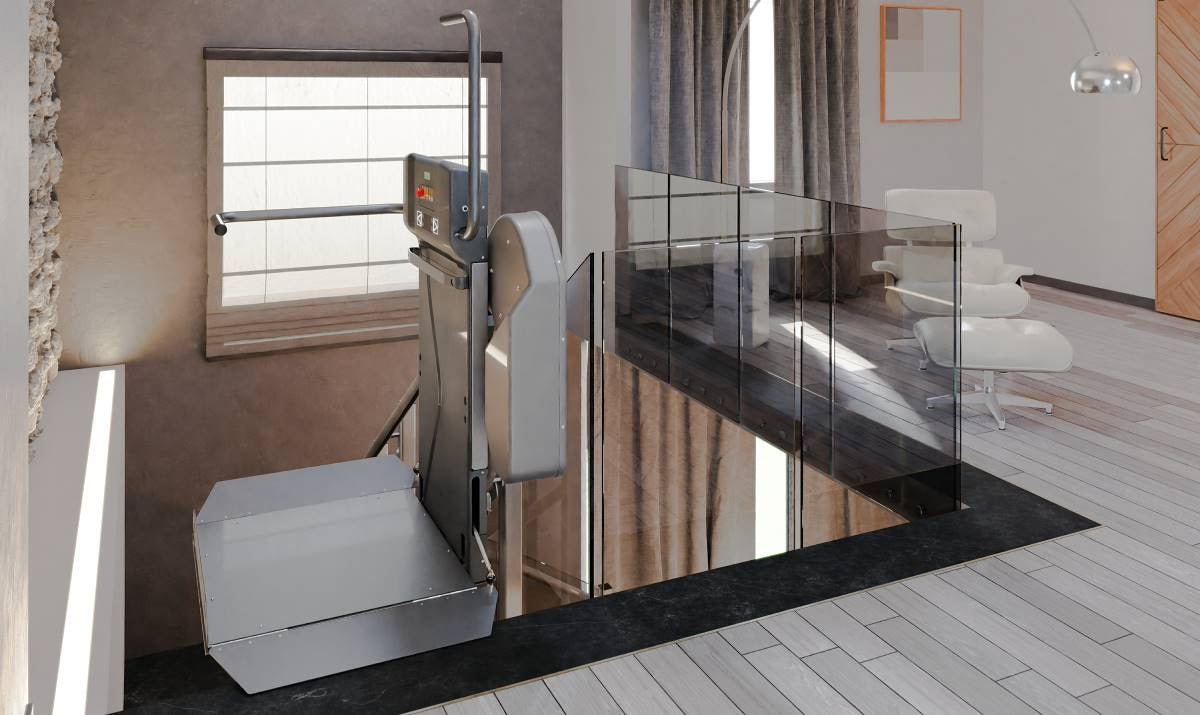

Extrema Slim - INCLINED PLATFORM LIFT FOR CURVED STAIRS

Extrema Slim - INCLINED PLATFORM LIFT FOR CURVED STAIRS

Regular price £0.00 GBP
Regular price Sale price £0.00 GBP
Sale Sold out

Note - If you have a long term illness or disability, or are a registered charity then no VAT is payable on eligiable products. The 20% VAT will be discounted at payment after completion of required declaration form.

Free site assessments. Contact us to discuss your accessibility needs

The special rope traction system presents major benefits in respect of the traditional rack-and-pinion system commonly offered on the market: Slim can suit to very narrow staircases (min. passage required 895 mm), installation is possible both on the inner and outer side of the staircase as well as with very low headbulk. Slim is also silent when functioning and comfortable for the user.

Technical data
Load capacity 225 Kg (300 optional)
Surmountable inclination 0°-55°
Speed 0,10 m/s
Control circuits voltage 24V DC
Maximum power (up to 3 floors) 0,75 kW
Soft-start and soft-stop system standard fitted
